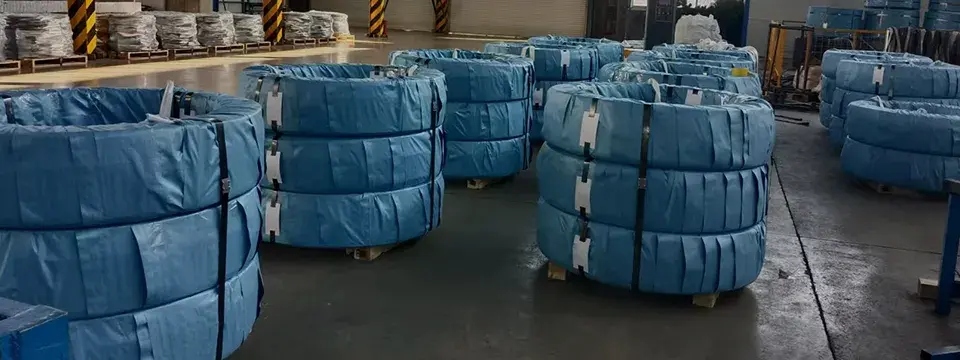

Cable bolt
The cable bolt support force is relatively large, and it is anchored by grouting, which is suitable for reinforcement of large-section chambers and roadways in underground mines.
Usually, cable bolt needs to be prestressed, it is an activeforce supporting, and can be used as a permanent anchoring project.
The system’s high load-bearing capacity ensures reliable support in demanding conditions.
Designed for efficient installation and maintenance, minimizes operational disruptions.
Its dynamic performance adapts to varying load conditions, providing superior support in both static and variable stressscenarios,thereby enhancing overall mine safety.
Product Features
-
Extra-Long Anchoring
-
High Prestress Capacity
-
High Load-Bearing
-
Flexible Body
Product Parameters
| Diameter (mm) | Weight (Kg/m) | Max Breaking (KN) | Strands of Wire | Elongation |
| 15,2 | 1,14 | 250 | 7 | 3,5% |
| 17,8 | 1,48 | 340 | 7 | 3,5% |
| 18,9 | 1,71 | 380 | 7 | 3,5% |
| 21,6 | 2,2 | 500 | 7 | 3,5% |
| 21,8 | 2,4 | 580 | 7 | 3,5% |
· Material: 1860mpa
· Coating: Galvanized (Optional)
