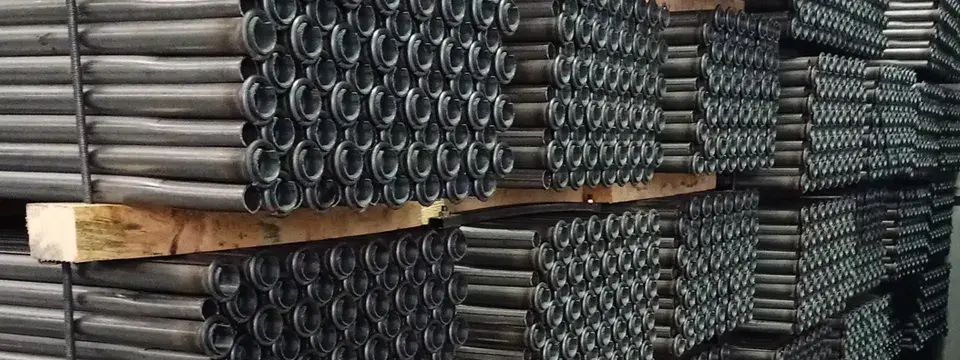

Friction bolt
The Split Set stabilizer is a slotted steel tube, with one end tapered for easy insertion into a drill hole. The other end has a welded ring flange to hold the bearing plate.
Immediate Support: The anchors provide instant stabilization as they are driven into the rock, creating friction that holds the surrounding material in place.
Efficiency: The straightforward installation process reduces downtime and increases productivity in mining operations. Frictional Resistance: They generate friction along the entire length of the anchor when inserted into a hole, providing immediate support.
Product Features
-
Full-Length Anchorage
-
Immediate Support
-
Simple Installation
-
Good Ductility
Product Parameters
| Type | SS33 | SS39 | SS47(46) |
| Outer Dia (mm) | 33 | 39 | 46 |
| Wall Thick (mm) | 2-2.5 | 2-2.5 | 2.5-3.2 |
| Weight (kg/m) | 1.67 | 1.92 | 2.71 |
| Bearing Plate (mm) | 150x150x4 | 150x150x4 | 150x150x4 |
| Borehole Dia (mm) | 30-32 | 35-38 | 43-45.5 |
| Bolt Length (m) | 0.9-2.4 | 0.9-3.0 | 0.9-3.0 |
| Min Yield Strength (kN) | 70 | 85 | 120 |
| Min Tensile Strength (kN) | 95 | 115 | 160 |
| Cross Section Area | 212 | 245 | 345 |
| Typical Anchorage (Tons) | 4-7 | 5-8 | 6-14 |
· Other lengths on request
