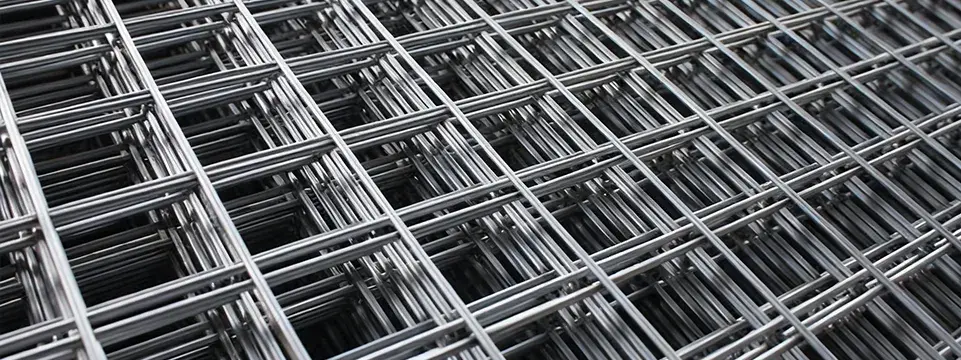

Mesh
Made of intersection points straight steel bars that are joined by fusion welding at their intersections. There are four types: black, galvanized, straight and corrugated. Welded wire mesh is made of high-quality low-carbon steel wire, and then cold-plated (electro), hot-dipped, PVC coated. Hole size and wire diameter are available in a variety of options to meet the diverse needs of customers.
Product Features
-
Flexibility
-
High Strength
-
Easy Installation
-
Safe and Reliable
Product Parameters
Minimum ultimate tensile
| Heavily galvanised 500 MPa Coating Weight 320 g/m2 minimum | Galvanised 500 MPa Coating Weight 80 g/m2 minimum | ||||
| Line wire | Cross wire | Min. wire tensile | Weld shear | Min. wire tensile | Weld shear |
| 4.0 mm | 4.0 mm | 6.0 kN | 4.5 kN | 6.0 kN | 4.5 kN |
| 5.0 mm | 5.0 mm | 9.5 kN | 7.2 kN | 9.5 kN | 7.2 kN |
| 5.6 mm | 5.6 mm | 12.5 kN | 9.0 kN | 12.5 kN | 9.0 kN |
| 8.0 mm | 8.0 mm | 19.1 kN | 15.1 KN | 19.1 kN | 15.1 kN |
Typical size options
| Length | Width | Aperture |
| 1000-6000 mm | 1200-2500 mm | Line wire 100 -150 mm and cross wire 50mm and greater |
