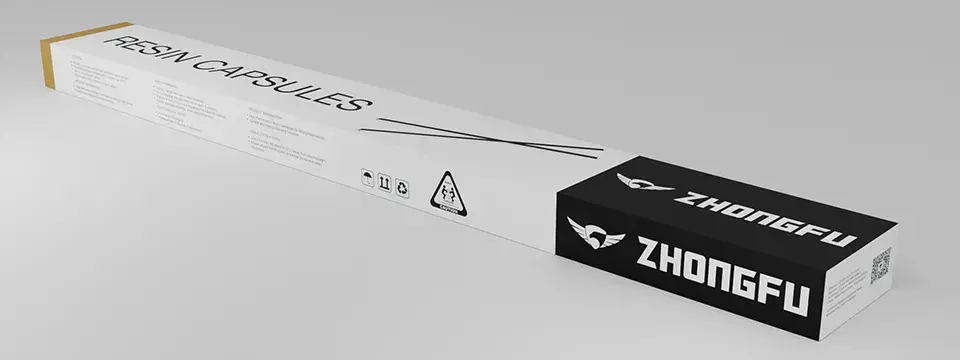

Resin capsule
ZhongFu Resin Capsules are a two-compartment capsule with the outer sheath made from polyester film.
The one compartment contains the resin mastic and the other compartment contains the catalyst paste.
The insertion and rotation of a roof bolt break the sheath and allows the resin and catalyst to be mixed. This thixotropic compound sets after a specified setting time and creates a chemical bond between the anchor and the strata.
Product Features
-
High Load-Bearing
-
Excellent Adhesion
-
Rapid Curing
-
High Durability
Product Parameters
Set Times Specifications
| Speed | Standard Colour
Codes |
Spin Time
@(sec) |
Hold Time
@(sec) |
Set Time
@(sec) |
| X Fast | Yellow | 8 | 7 | 15 |
| Fast | Red | 10 | 20 | 30 |
| Medium | Bule | 15 | 45 | 60 |
| Slow | White | 20 | 180 | 200 |
·Typical insertion properties at 25'C are as follows.
Strength
| Compressive Standard | >60 MPa |
| Shear Strength | >35 MPa |
Dimensional Specifications
| Standard*Diameter (mm) | 23, 25, 28, 30, 32, 35 |
| Standard*Length (mm) | 350, 400, 450, 500, 600, 700,
900, 1000, 1100, 1150, 1200 |
